Author Topic: Eoo3: Programmable Looper/Switcher/Midi Controller  (Read 7890 times)

Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #90 on: February 16, 2019, 01:57:55 PM »
I knew it was going to be a PITA to make that square hole, but actually, it's not that bad...




gordo

  • Electron Doctor
  • *****
  • Posts: 1921
    • View Profile
    • Project Website
Re: Programmable Arduino Looper / Switcher
« Reply #91 on: February 16, 2019, 06:25:01 PM »
In that stuff I think it's easier to make a square hole than a round one :-)

Definitely doesn't like drill bits.

gordo

  • Electron Doctor
  • *****
  • Posts: 1921
    • View Profile
    • Project Website
Re: Programmable Arduino Looper / Switcher
« Reply #92 on: February 16, 2019, 06:29:41 PM »
The downside to all this is that it's likely going to torpedo the Linda Looper I never quite finished.  It's THIS close to being completed...

Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #93 on: February 17, 2019, 07:44:10 AM »

brejna

  • Electron Doctor
  • *****
  • Posts: 1320
  • Brane
    • View Profile
    • aestheticempathy
Re: Programmable Arduino Looper / Switcher
« Reply #94 on: February 17, 2019, 07:54:15 AM »
Looks great, I was tinking to maybe do it in 3 rows..

Poslano sa mog Redmi Note 6 Pro koristeći Tapatalk


Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #95 on: February 20, 2019, 05:33:06 AM »
First Jacks arrived... looking good so far, also with the placement of the PCBs. Bummer: The mounting holes in the PCB are too big (radius <> diameter   :o)





I will use rubber feet on the rear side (and tiny ones on the front): Easier access to rear footswitch row (loop row) and ideal for using pancake jacks. Probably will use a bit higher feet ...


Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #96 on: February 21, 2019, 11:23:15 AM »
Perfect  :o




jjjimi84

  • Stompbox Star
  • ***
  • Posts: 217
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #97 on: February 21, 2019, 12:04:51 PM »
This is looking so awesome! Seriously nice work

Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #98 on: February 21, 2019, 01:36:31 PM »
The downside to all this is that it's likely going to torpedo the Linda Looper I never quite finished.  It's THIS close to being completed...
If this all works out, I am selling my Linda Looper :-).

Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #99 on: February 23, 2019, 10:25:57 AM »
Working on the documentation. Hope that this image explains better, what happens

- on incoming Midi events
- when a Preset Button is pressed
- when a Loop button is pressed


« Last Edit: February 23, 2019, 11:04:28 AM by Marshall Arts »

brejna

  • Electron Doctor
  • *****
  • Posts: 1320
  • Brane
    • View Profile
    • aestheticempathy
Re: Programmable Arduino Looper / Switcher
« Reply #100 on: February 23, 2019, 10:38:56 AM »
The most functional looper/switcher ever.. All you need is one bank

Poslano sa mog Redmi Note 6 Pro koristeći Tapatalk


gordo

  • Electron Doctor
  • *****
  • Posts: 1921
    • View Profile
    • Project Website
Re: Programmable Arduino Looper / Switcher
« Reply #101 on: February 23, 2019, 11:35:52 AM »

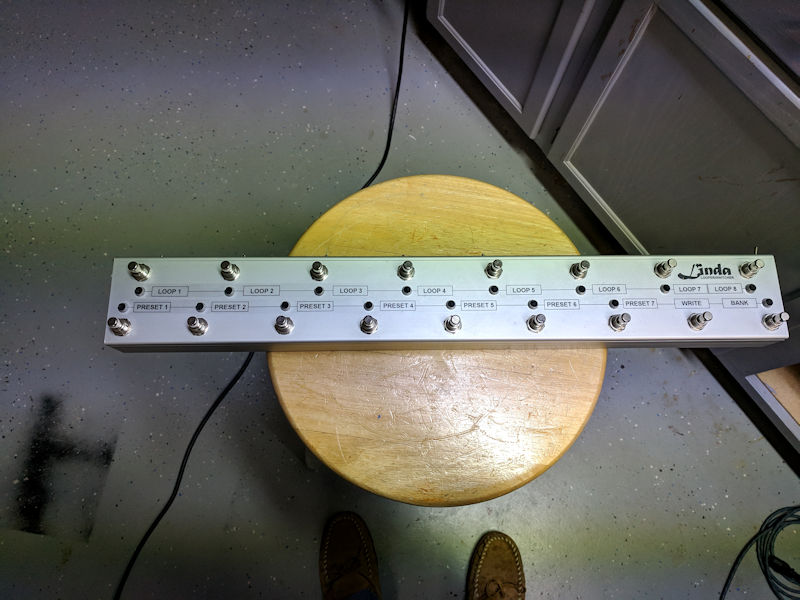

Labeled and everything...

Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #102 on: February 23, 2019, 01:44:43 PM »
Labeled and everything...
Man. I am really sorry... Where did yet the enclosure from? I heard that it was a hard catch outside from Germany...

gordo

  • Electron Doctor
  • *****
  • Posts: 1921
    • View Profile
    • Project Website
Re: Programmable Arduino Looper / Switcher
« Reply #103 on: February 23, 2019, 07:41:53 PM »
I'll go thru my paperwork.  It was a lot of detective work and it was sold as wire channel for high end modular furniture.  Cost me a fortune but is very cool.  I suspect if a bunch of us bought it the price might be more reasonable.

Marshall Arts

  • Electron Doctor
  • *****
  • Posts: 721
    • View Profile
Re: Programmable Arduino Looper / Switcher
« Reply #104 on: February 23, 2019, 08:49:48 PM »
I am sure you can reuse it for the new version... Seriously!
