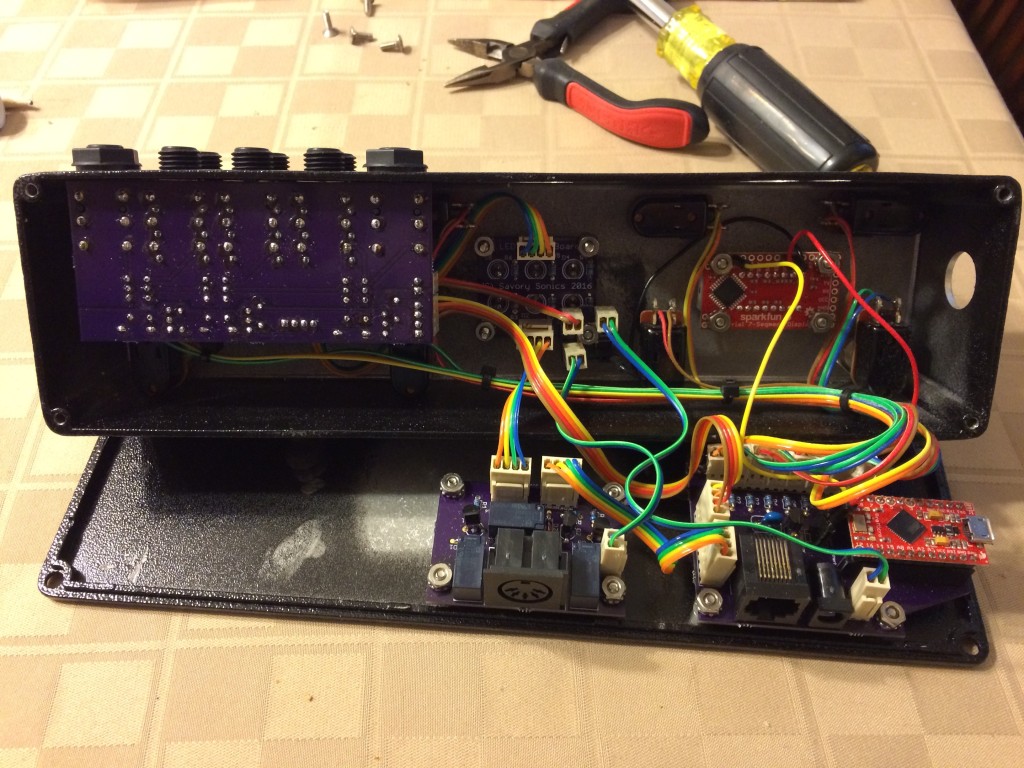

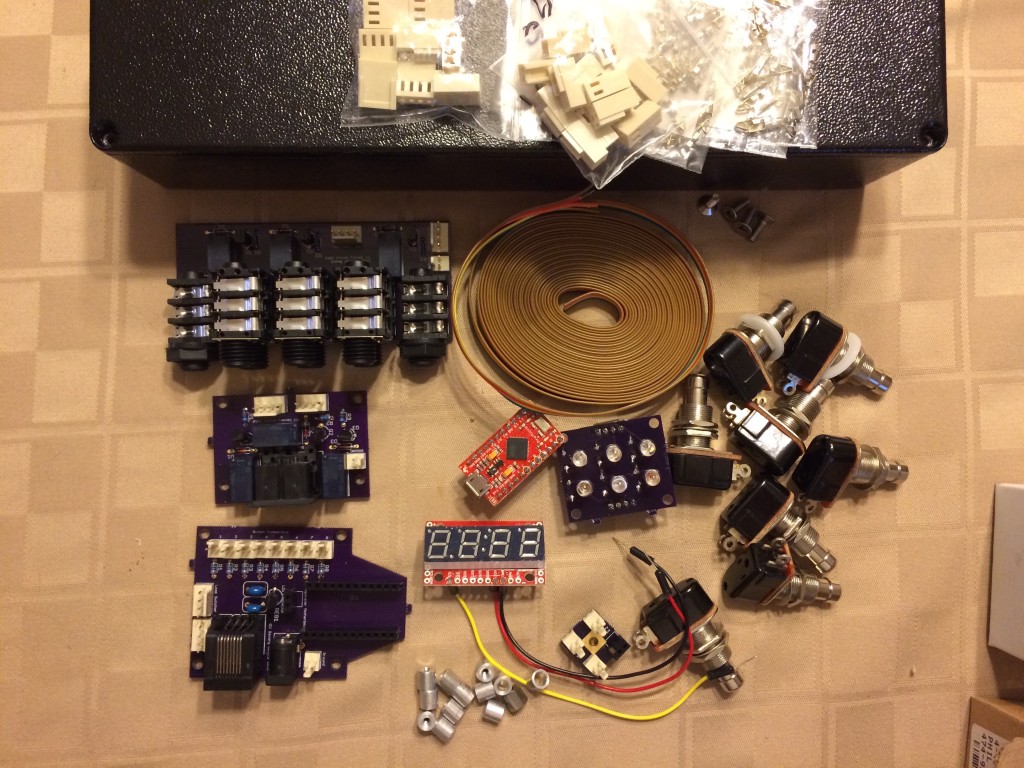

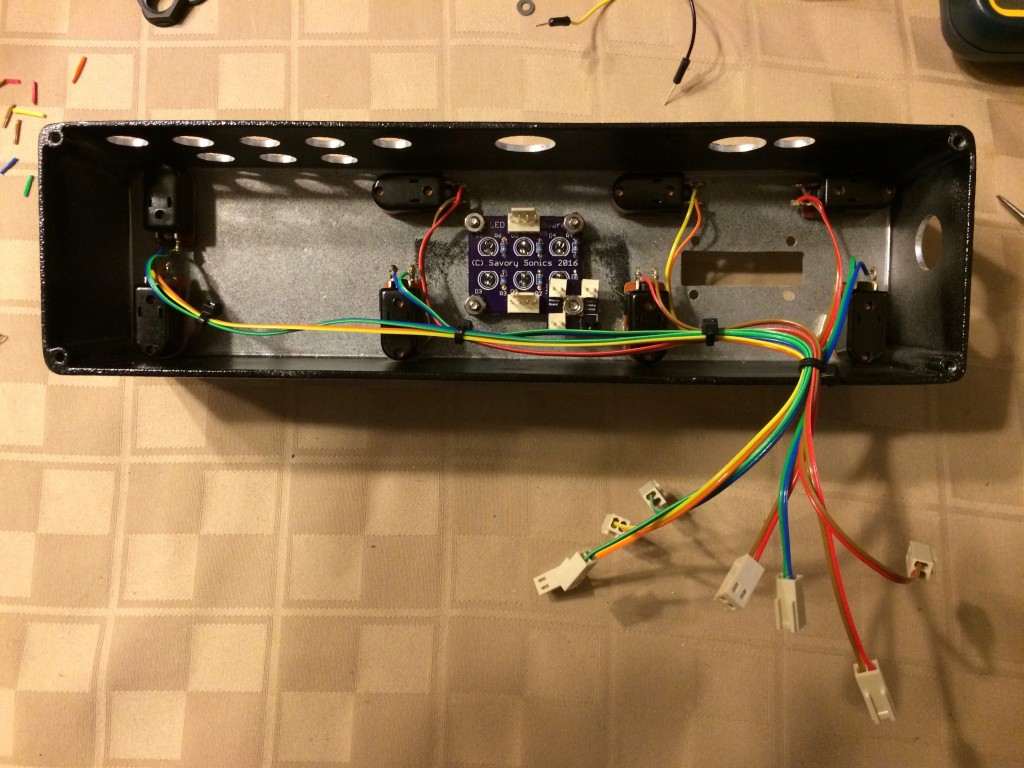

Thanks! All the purple PCBs are mine, designed in Eagle and fabbed by OSHPark. I breadboarded all the basic circuits first and the created the schematics and board layouts once I had them successfully tested. I used Omnigraffle on the Mac to do the layout of everything in the enclosure.

I of course still messed up some layout things (power polarity, led polarity, regulator pin out, button header spacing, etc...)  I managed to work around all those glitches and get it functional though. I was actually kind of surprised how well it worked once it was up and running. I split the analog and digital grounds and ran them all with 2 pin headers per board to a central "ground board" for a star kind of thing. No hum issues using isolated taps off my Pedal Power for everything, but if running everything off a single OneSpot some pedals have a bit of low frequency hum when engaged. May experiment with different ground schemes at some point, but for my purposes it works perfectly.

-Aaron

Hello!

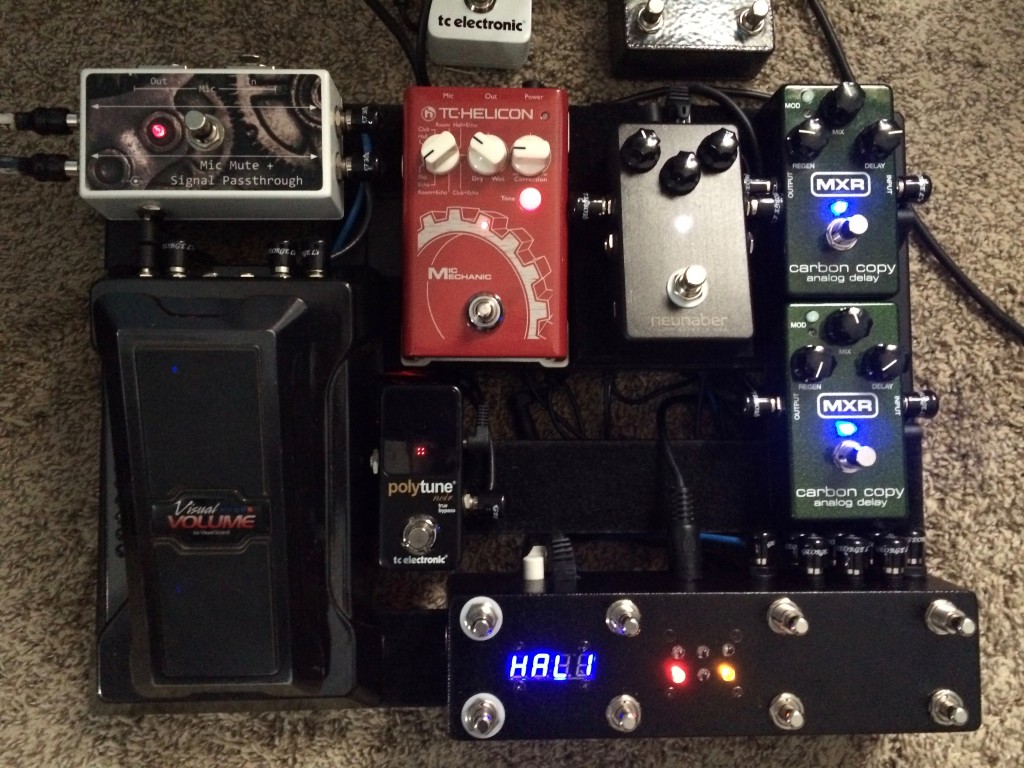

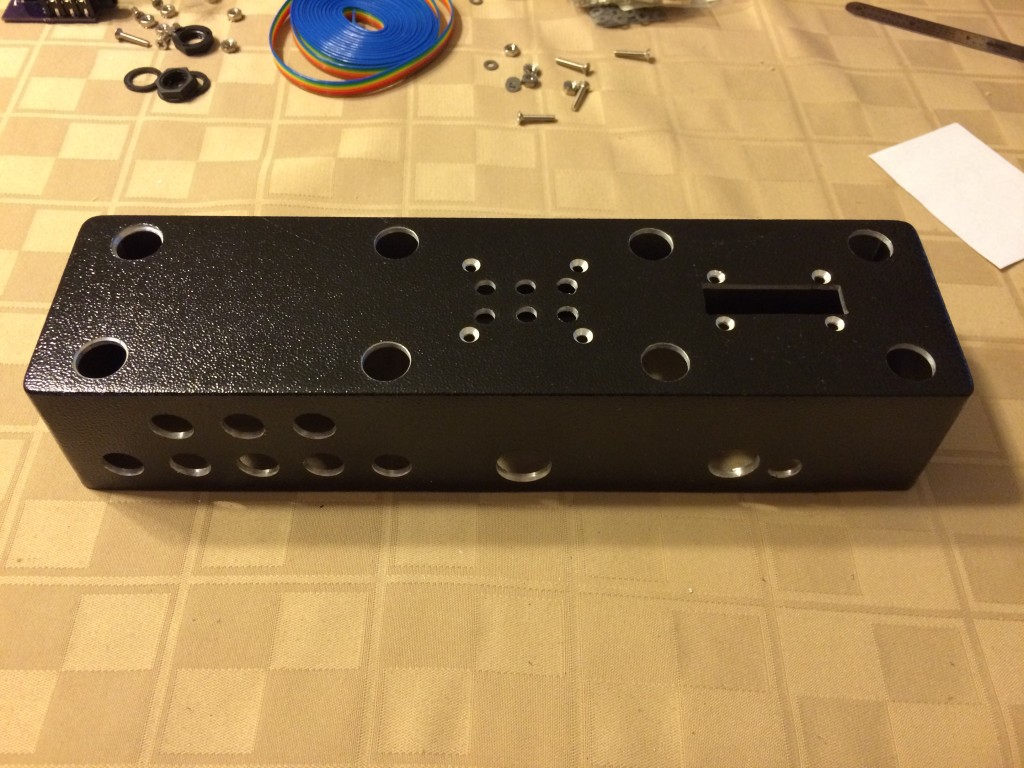

I finished up this project a week or so ago. It's a programmable true bypass loop switcher, amp channel switcher and Neunaber Slate controller. The logic is controlled using an Arduino Pro Micro from SparkFun and it's housed in a 4Site 1032L from Pedal Parts Plus.

Features:

• ~65mA current draw max (all relays on).
• 3 relay controlled true bypass loops
• 3 relay controlled external switch functions wired to a 5 pin din jack (controls od, boost and reverb on my amp)

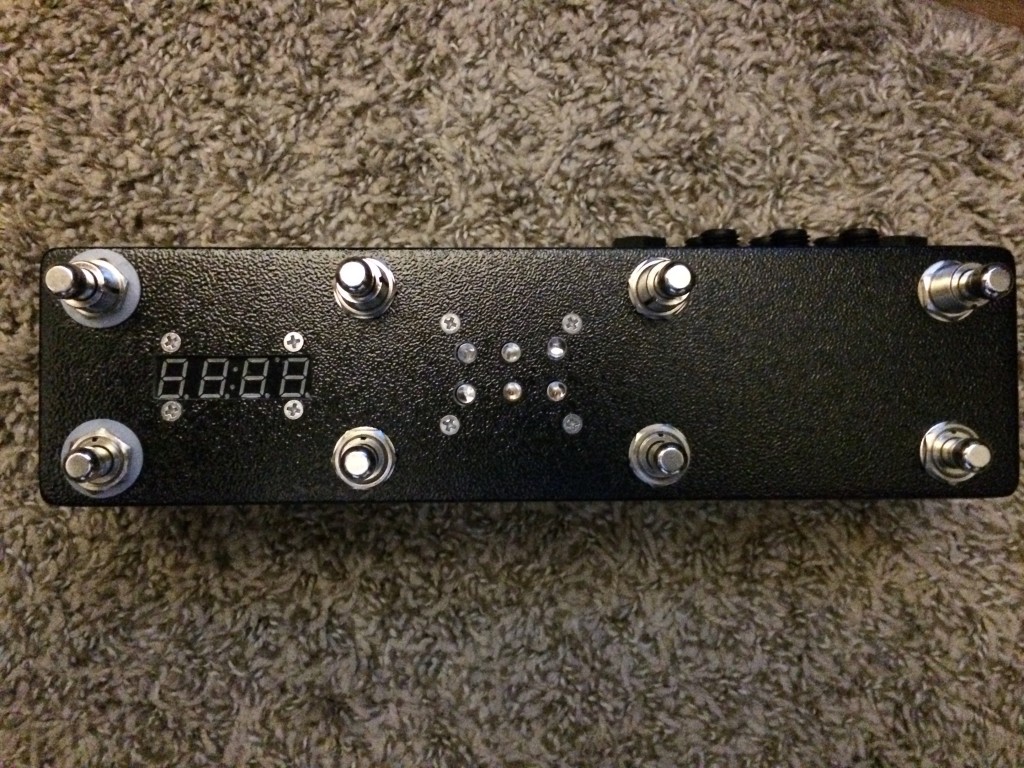

• 6 color-coded leds to indicate the current state of the six relays.
• Control over effect and preset on Neunaber Stereo v2 pedals via their expansion port (exp) interface.
• Preset mode (60 presets) - saves the state of the 6 relays and Exp. effect/preset in any of 10 banks of 6 patches.
• Instant Access mode - allows toggling the state of the 6 relays via the six buttons on the right, and cycling through the effects/presets on the Neunaber using the bank up/down switches on the left.

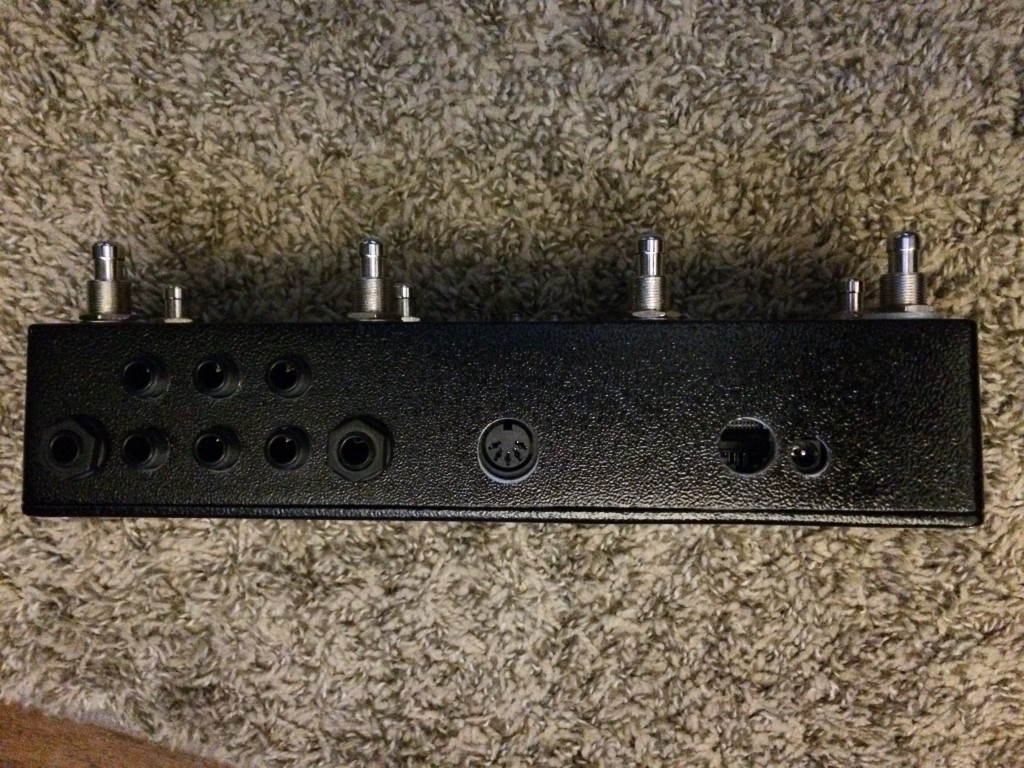

• 10" (W) x 2.6" (D) x 2" (H)

-Aaron
