Re: Picture Showcase - post your best pedal work
« Reply #45 on: March 16, 2015, 11:37:15 AM »

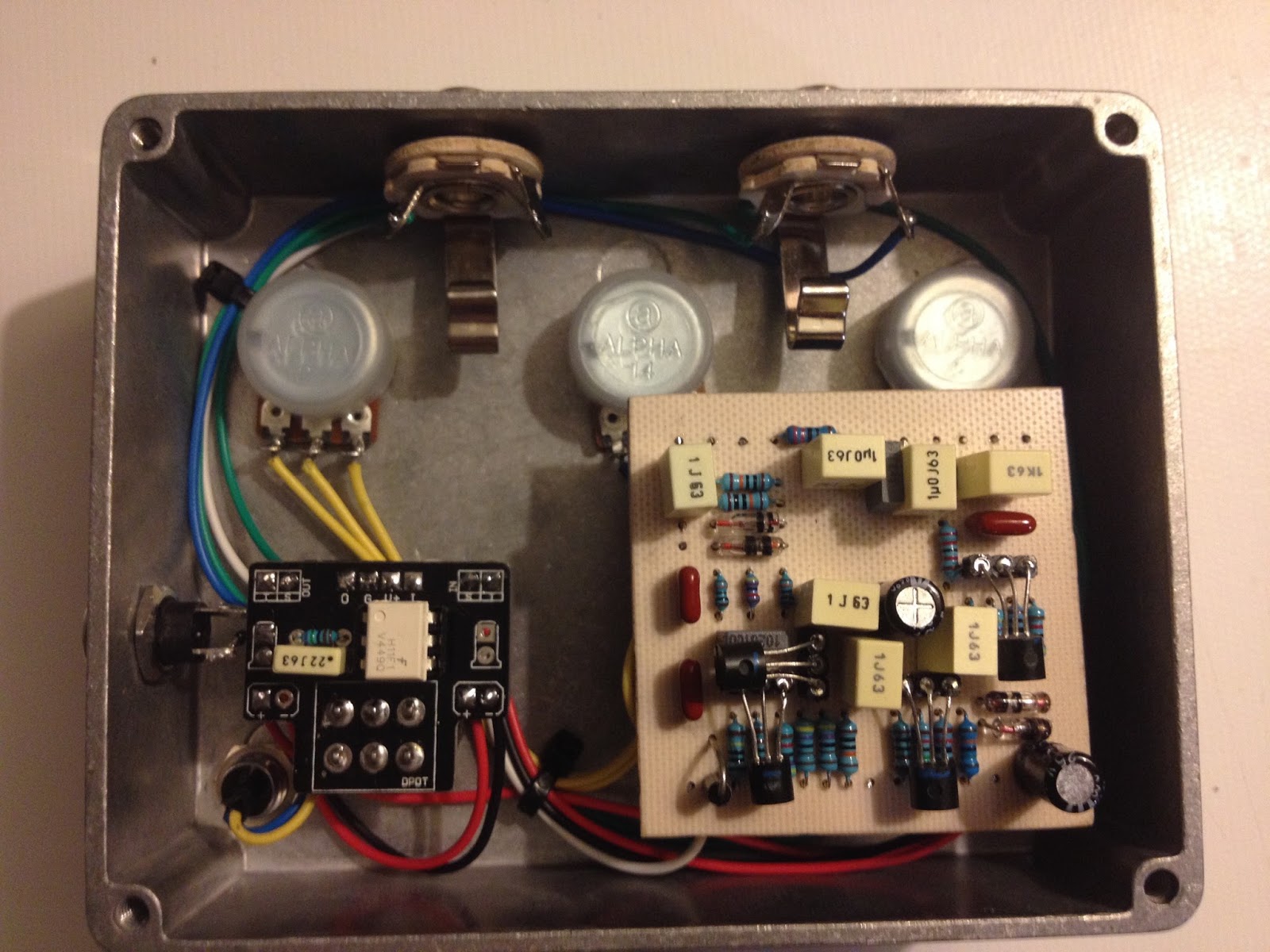

Here's a couple of my favorite builds.

Silicon Fuzz Face with 2N5550 transistors.





Maestro FZ-1S from the old GGG layout. I built the box too.





Trill Tremolo



Guy behind Effects Layouts

aeroemi

  • Transistor Tickler
  • **
  • Posts: 81
  • Emilio
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #46 on: March 26, 2015, 06:29:57 AM »
My Zefiro optical Compressor

aeroemi

  • Transistor Tickler
  • **
  • Posts: 81
  • Emilio
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #47 on: March 26, 2015, 06:30:36 AM »
FlameXS Booster/buffer

aeroemi

  • Transistor Tickler
  • **
  • Posts: 81
  • Emilio
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #48 on: March 26, 2015, 06:31:08 AM »
Sparkle Dynamic Overdrive

jimilee

  • Electron Doctor
  • *****
  • Posts: 7445
  • Jimi Lee
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #49 on: March 26, 2015, 08:07:09 AM »

How about a lacesensor doppelgänger.


Sent from my iPhone using Tapatalk
Pedal building is like the opposite of sex.  All the fun stuff happens before you get in the box.

snarblinge

  • Diode Destroyer
  • *
  • Posts: 3
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #50 on: April 18, 2015, 03:23:38 AM »
Generally Lurk only around here, but thought I would lower the expectation level, with some of my Favourite builds so far.


Fuzz face with Ge/Si switched and bias control


Scrambler in home bent (badly) aged steel, and handmade wood ends


a trio of Fuzz faces



Couple of colorsound overdrivers


Uglyface with the lfo, must make another one of these


Echobase, with internal loop (never again)



Custom grunty power supply

nzCdog

  • Electron Doctor
  • *****
  • Posts: 3851
  • Corey - Christchurch, NZ
    • View Profile
    • Soundcloud
Re: Picture Showcase - post your best pedal work
« Reply #51 on: April 18, 2015, 03:38:57 AM »
love the fuzzface trio snarlblinge!  8) very intrigued about the echobase too... what looper did you add?

snarblinge

  • Diode Destroyer
  • *
  • Posts: 3
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #52 on: April 18, 2015, 03:43:32 AM »
Thanks cdog. the loop is in the circuit somewhere, I can't remember where exactly, from memory there are three places you can splice it in, pre, repeats, or post repeats, or somewhere else, It was a big headache, but did work, i think i had to add a buffer and boost also, the inside got a bit cramped, as I refuse to use pcbs mounted pots, preferring my own layout of knobs etc. echobase is is a fun build, but never again with the loop.

EDIT: turns out there is a thread here on how someone else did it, looks pretty similar from memory. http://www.madbeanpedals.com/forum/index.php?topic=19063.0
« Last Edit: April 18, 2015, 03:50:32 AM by snarblinge »

nzCdog

  • Electron Doctor
  • *****
  • Posts: 3851
  • Corey - Christchurch, NZ
    • View Profile
    • Soundcloud
Re: Picture Showcase - post your best pedal work
« Reply #53 on: April 18, 2015, 03:53:50 AM »
Thanks cdog. the loop is in the circuit somewhere, I can't remember where exactly, from memory there are three places you can splice it in, pre, repeats, or post repeats, or somewhere else, It was a big headache, but did work, i think i had to add a buffer and boost also, the inside got a bit cramped, as I refuse to use pcbs mounted pots, preferring my own layout of knobs etc. echobase is is a fun build, but never again with the loop.

EDIT: turns out there is a thread here on how someone else did it, looks pretty similar from memory. http://www.madbeanpedals.com/forum/index.php?topic=19063.0


Oh thats cool!  Thanks for the link :)
« Last Edit: April 18, 2015, 04:11:53 AM by nzCdog »

lincolnic

  • Electron Doctor
  • *****
  • Posts: 2277
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #54 on: April 18, 2015, 10:18:37 PM »
I love the look of filling in the negative space to create the "FUZZ" labels…gonna have to try that sometime!

George

  • Transistor Tickler
  • **
  • Posts: 96
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #55 on: February 03, 2016, 03:43:16 AM »
I m gonna leave this comment here so i ll get notified when more awesome pedals are posted. Good job everyone
« Last Edit: July 20, 2016, 02:30:04 AM by George »

basser_32

  • Diode Destroyer
  • *
  • Posts: 4
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #56 on: March 13, 2016, 02:29:54 AM »
Some of these builds are amazing! On some them you can hardly see any wires  :)

Definitely getting some inspiration for future builds

flanagan0718

  • Electron Doctor
  • *****
  • Posts: 2696
  • Mike
    • View Profile
    • Custohm Electronics
Re: Picture Showcase - post your best pedal work
« Reply #57 on: March 13, 2016, 11:15:54 AM »
Here are my favorite 3 from last year.

Madbeans Wolfshirt





Music PCB Echo Base





Jon Patton (Midwayfair's) Hamlet Delay




galaxiex

  • Solder Ninja
  • ****
  • Posts: 288
  • Edmonton, Alberta Canada
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #58 on: March 13, 2016, 12:04:52 PM »
Wow awesome builds here!

I'm still quite new to pedal building and most of mine just have labelmaker stickers on them.

This was my first attempt at waterslide decal. Took about 6 tries to get it looking like this and still has flaws but
"good enough"

It's a GuitarPCB DSOTM (Dark Side of the Moon) Fuzz.
Fear leads to Anger, Anger leads to Hate, Hate leads to Suffering.

George

  • Transistor Tickler
  • **
  • Posts: 96
    • View Profile
Re: Picture Showcase - post your best pedal work
« Reply #59 on: March 14, 2016, 04:19:07 AM »
My Zefiro optical Compressor

How do you do the white lettering on those pedals?? Really nice work
« Last Edit: March 14, 2016, 04:23:01 AM by George »
