the Monsterplex
« on: December 10, 2014, 12:53:39 PM »

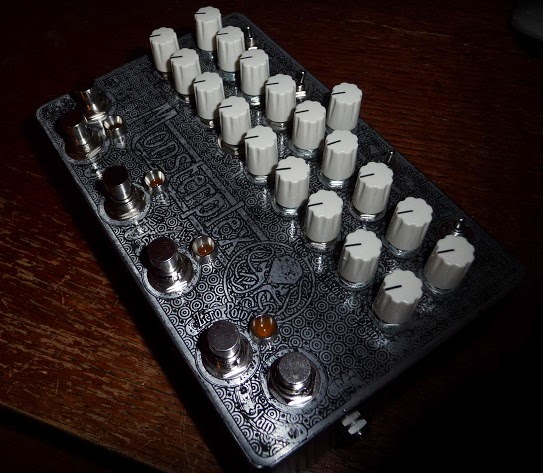

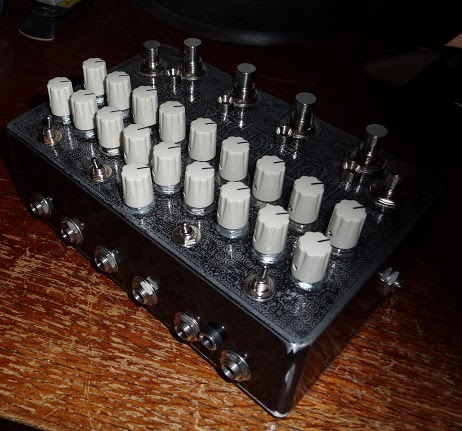

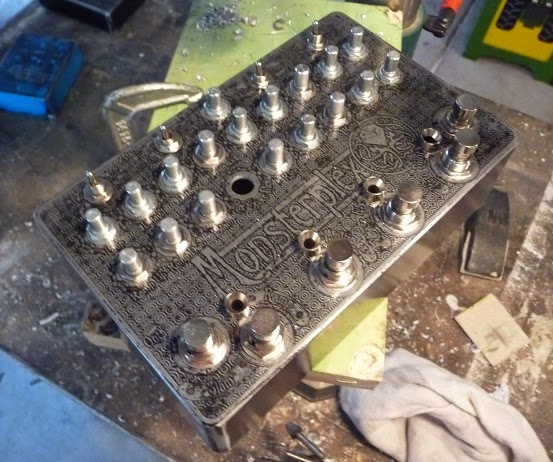

The Monsterplex was going to be my fall contest submission, but I ran into a few technical issues and had to slow down to make sure all the switching/signal routing was right.  After many hours of wiring, it wasn't!  So many hours of rewiring later it is ALIVE!

The pedal features a Multiplex with modulation daughterboard, a Zero-Point DD, and a Galacticon Deluxe Phase 45.  The Phase 45 can be standalone or assigned to the repeats of the ZPDD, and the ZPDD can be standalone or assigned to the repeats of the Multiplex.  Both delays feature dedicated slam controls, and adjustable ramps on the MP.  Both also have FX loops after the assignable onboard effects and expression control jacks for the mix controls one either delay so you can fade into them.  Both delays also have trails bypass.  Demo to follow.
In His service.

Sunday Handwound Pickups
Sunday Handwired Amps and Effects
Magnolia Hill Market Garden

jubal81

  • Electron Doctor
  • *****
  • Posts: 3383
  • Jason - Evergreen State
    • View Profile
Re: the Monsterplex
« Reply #1 on: December 10, 2014, 12:58:11 PM »
That's flat out incredible.  :o


... and I have no idea how it works. We're gonna have to hear it!
"If you put all the knobs on your amplifier on 10 you can get a much higher reaction-to-effort ratio with an electric guitar than you can with an acoustic."
- David Fair

m-Kresol

  • Electron Doctor
  • *****
  • Posts: 2816
  • Felix - Graz, Austria
    • View Profile
    • My blog - in german
Re: the Monsterplex
« Reply #2 on: December 10, 2014, 01:02:19 PM »
Friggin' unbelievable!
I build pedals to hide my lousy playing.

My projects are labeled Quantum Effects. My shared OSH park projects: https://oshpark.com/profiles/m-Kresol
My build docs
My etching tutorial

davent

  • Electron Doctor
  • *****
  • Posts: 2477
  • Hamilton ON
    • View Profile
Re: the Monsterplex
« Reply #3 on: December 10, 2014, 01:12:15 PM »
Any second thoughts on single colour wiring?
dave
"If you always do what you always did- you always get what you always got." - Unknown

If my photos are missing again... they're hosted by photobucket... and as of 06/2017 being held hostage... to be continued?

pickdropper

  • Electron Doctor
  • *****
  • Posts: 6169
    • View Profile
Re: the Monsterplex
« Reply #4 on: December 10, 2014, 01:18:29 PM »
Any second thoughts on single colour wiring?
dave

Wow, no kidding.  That was my first thought as well.  I'm guessing there was a lot of time with the DMM on the continuity setting.

Great job.  Amazing build.
Function f(x)
Follow me on Instagram as pickdropper

Luke51411

  • Electron Doctor
  • *****
  • Posts: 1505
    • View Profile
Re: the Monsterplex
« Reply #5 on: December 10, 2014, 01:18:55 PM »
...   ....     ....   gasp... speechless.

brejna

  • Electron Doctor
  • *****
  • Posts: 1347
  • Brane
    • View Profile
    • aestheticempathy
Re: the Monsterplex
« Reply #6 on: December 10, 2014, 01:21:56 PM »
That's Monsterbuild :D

gtr2

  • Electron Doctor
  • *****
  • Posts: 4789
  • Josh
    • View Profile
    • 1776 effects
Re: the Monsterplex
« Reply #7 on: December 10, 2014, 01:25:19 PM »
No words.........  :o

Can we get a recount for the contest ;)
1776 EFFECTS STORE
Contract PCB designer

bcalla

  • Electron Doctor
  • *****
  • Posts: 1335
  • Bob, Reading, MA USA
    • View Profile
Re: the Monsterplex
« Reply #8 on: December 10, 2014, 01:28:08 PM »
Any second thoughts on single colour wiring?
dave

It's not single color... You missed the orange/white striped wire on the LEDs.   ;D

Holy crap that's impressive!!

cooder

  • Electron Doctor
  • *****
  • Posts: 2712
  • Stephan Nelson / New Zealand / Aotearoa
    • View Profile
Re: the Monsterplex
« Reply #9 on: December 10, 2014, 01:49:25 PM »
Absolutely amazing :o you've outdone yourself, Tim, and that means a lot!
Congrats! 8)
BigNoise Amplification

jkokura

  • Global Moderator
  • Electron Doctor
  • *****
  • Posts: 7558
  • Jacob - SK, Canada
    • View Profile
    • JMK PCBs
Re: the Monsterplex
« Reply #10 on: December 10, 2014, 01:52:06 PM »
Wow.

Jacob
JMK Pedals - Custom Pedal Creations
JMK PCBs *New Website*
pedal company - youtube - facebook - Used Pedals

Tremster

  • Electron Doctor
  • *****
  • Posts: 831
    • View Profile
Re: the Monsterplex
« Reply #11 on: December 10, 2014, 01:56:52 PM »
Oh dear.

Droogie

  • Electron Doctor
  • *****
  • Posts: 659
  • Andrew
    • View Profile
Re: the Monsterplex
« Reply #12 on: December 10, 2014, 01:57:08 PM »
!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Chief Executive Officer in Charge of Burrito Redistribution at Hytone Electric

midwayfair

  • Electron Doctor
  • *****
  • Posts: 7198
  • Jon P
    • View Profile
    • Midway Fair
Re: the Monsterplex
« Reply #13 on: December 10, 2014, 02:00:07 PM »
I spy with my little eye, something that begins with Cth.

This looks like it was ... maddening to build.
Myself's music & things I make: http://jonpattonmusic.com. My band: http://midwayfair.org. PCBs of my designs from: http://www.1776Effects.com (Bearhug Comp & Cardinal Harmonic Trem); http://www.jmkpcbs.com (Hamlet+ delay & Blue Warbler envelope vibe); Snow Day OD/Flabulanche: www.madbeanpedals.com

timbo_93631

  • Electron Doctor
  • *****
  • Posts: 1758
  • Sunday Handwired - Sunday Handwound
    • View Profile
    • Sunday Handwired Amps and Effects
Re: the Monsterplex
« Reply #14 on: December 10, 2014, 02:09:59 PM »

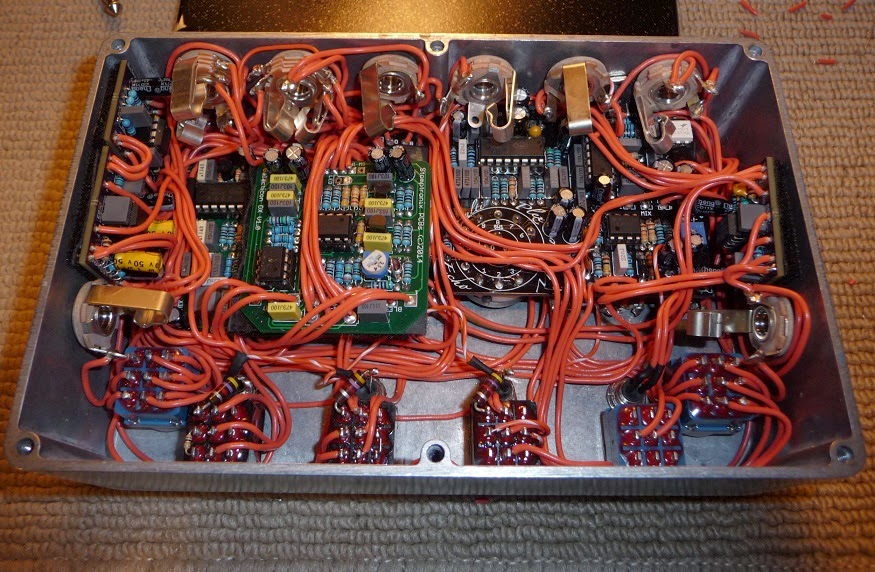

It took quite awhile to get right, but not really because of the single color (aside from the orange/white on +9v) wiring so much as just getting everything to play nice assigning things to the repeats and also some issues with the loops.  But it was slow and tedious work.  Nice that after reworking it everything fired right up.  It sounds really nice, and I am looking forward to sending it off to Mat, the buyer.  He created the graphics, and has been lurking here so if you guys dig the aesthetic, all credit goes to him on that one.
