Live series VFE drill template
«
on:
May 20, 2018, 08:55:20 AM »

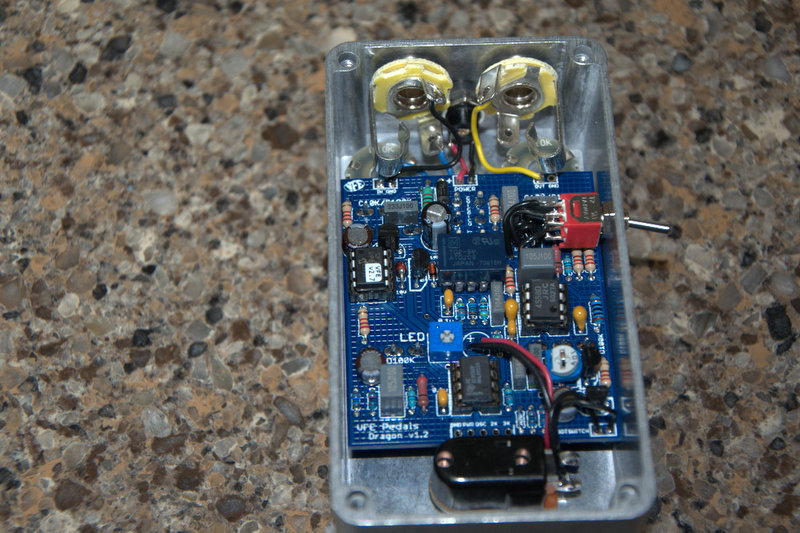

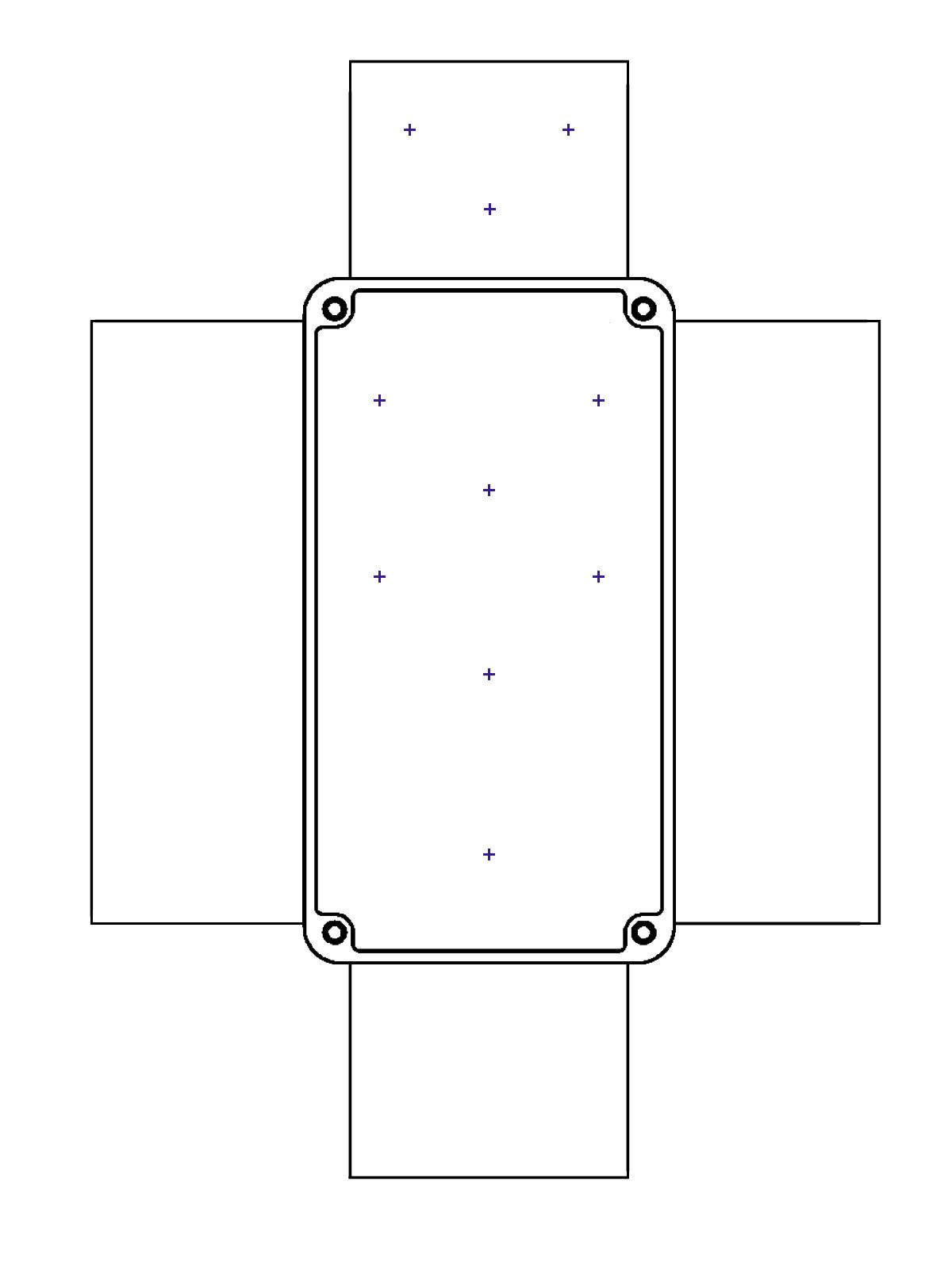

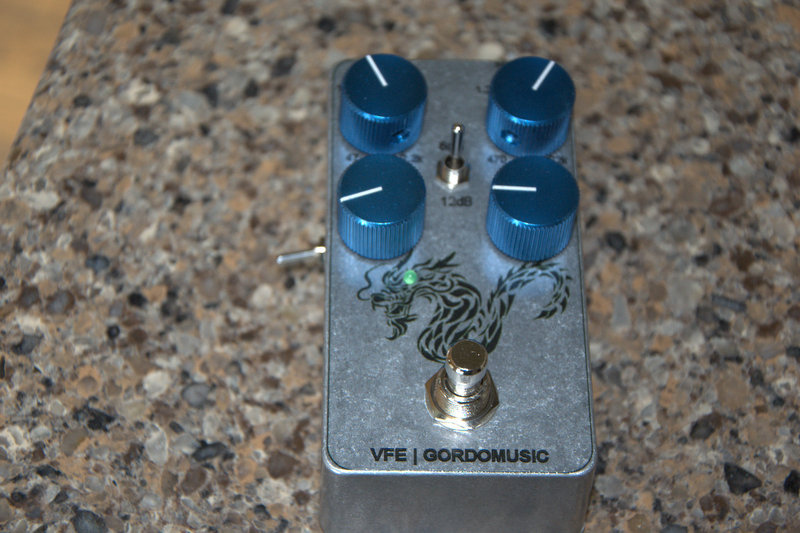

The usual disclaimer...double check this before you hack up an enclosure. I've tacked some Dragon photos along with it to show the results. The two weird things about this build are that I used an external buff/non-buffer switch (not really necessary but couldn't find a slide switch to fit the board), and I socketed the relay in an attempt to get the right one. The relay is different from the MadBean VFE's and I had NO intention of trying to desolder another one...
http://www.gordomusic.com/Madbean/Live Series drills.jpg
http://www.gordomusic.com/Madbean/Live Series drills.psd
http://www.gordomusic.com/Madbean/Live Series drills.pspimage
http://www.gordomusic.com/Madbean/Live Series VFE 1590B2.pdf
Logged
Gordy Power
How loud is too loud? What?
nimbleswitch
Diode Destroyer
Posts: 31
I make myself rich by making my wants few.
Re: Live series VFE drill template
«
Reply #1 on:
November 14, 2023, 08:14:57 PM »
Hey, thanks for sharing your work. This will save me a lot of time. Gracias!
Logged
I've got one hand in my pocket, and the other one is waving a dildo.
jimilee
Global Moderator
Electron Doctor
Posts: 11362
Jimi Lee
Re: Live series VFE drill template
«
Reply #2 on:
November 14, 2023, 08:51:12 PM »
Nice
Sent from my iPhone using Tapatalk
Logged
Pedal building is like the opposite of sex. All the fun stuff happens before you get in the box.
Bio77
Electron Doctor
Posts: 1679
Re: Live series VFE drill template
«
Reply #3 on:
November 14, 2023, 08:59:53 PM »
Another banger, Gordo!
I want to see a picture of your hoard sometime
Logged
jessenator
Electron Doctor
Posts: 713
(un)Professional Hobby Collector
Re: Live series VFE drill template
«
Reply #4 on:
November 14, 2023, 09:55:28 PM »
very nice!
Logged
