FV1 Qubit
« on: July 23, 2019, 10:33:34 AM »

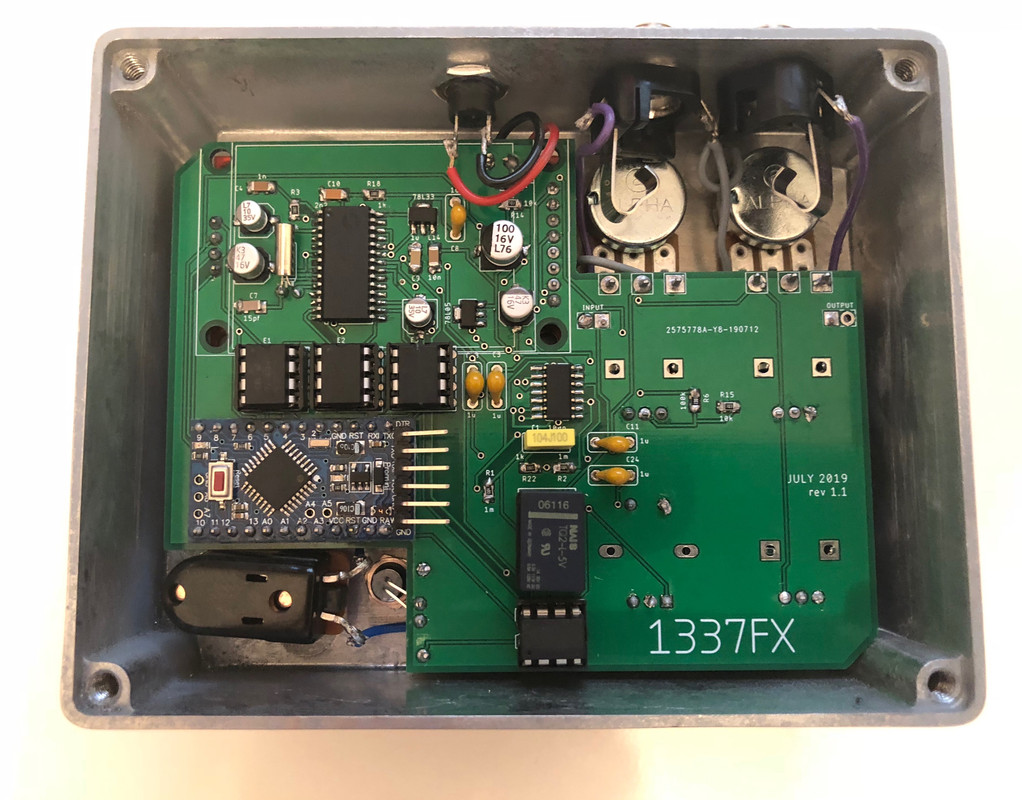

Arduino Pro Mini reads a 24 position rotary encoder
selects program from 3 eeprom's and prints info to screen
each eeprom holds 8 algorithms
24 programs/algorithms total
I'm using algorithms from pedalpcb (not included here) and the spinsemi forum
download includes Build docs, Arduino code, relay bypass code, eagle files, gerbers
https://www.dropbox.com/s/uhcc6mx8ewgyw0s/FV1%2024.zip?dl=0
