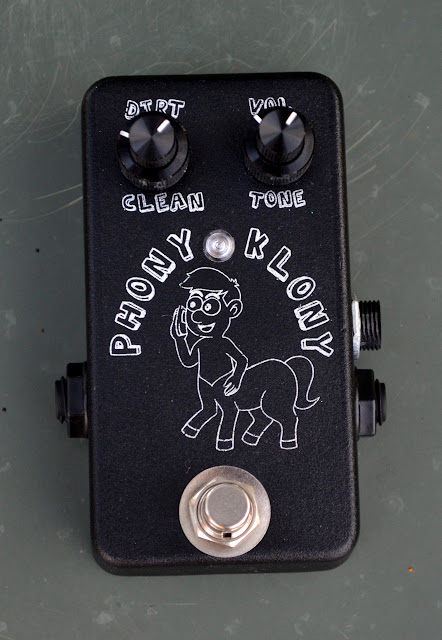

Meet the "Phony Klony"  ;D I finally built a pcb from my Apis PCB run

The name and idea is inspired by midwayfair. I was thinking of things that rhymed with Klony like  midwayfair's "Klony" series. Phony rhymes :) like fake, I know corny but I like it.

How does it sound...like a klon :) I used dual concentric knobs for the clean/gain and vol/tone. It worked out really well. I don't think that splitting the gain pot is very useful but i couldn't find a matching knob as a single so they both ended up dual for aesthetics. The finish is powder coat black texture.

« Last Edit: October 17, 2012, 07:44:08 PM by jimmybjj »
Pcbs no longer available
